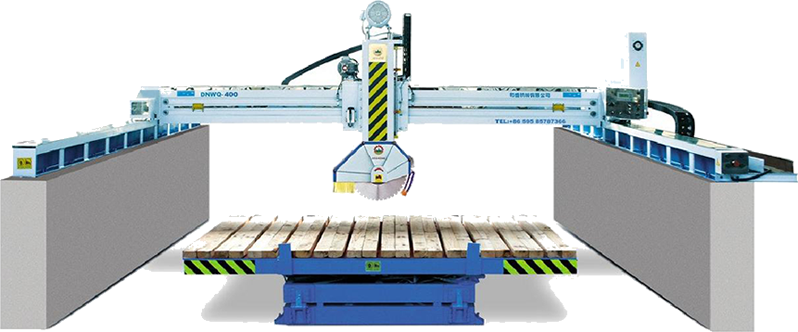

DNWQ-400(600) Bridge Edge cutting machine

Machine suited to all workshops for production of worked marble and granite. LCD graphics monitor to view English programme data. Right/left movement, translation of bridge, up/down movement of head, required bench rotation automatic and manually controlled. Separate ampermometer for regulating right/left sliding speed. Worktable tilts up by 85°for loading and unloading slabs. Hydraulically tilting head from 45°for marble/granite cutting.(optional) Automatic and programmable rotating can be blocked in every positions between 0°-360°or (optional). Electronically controlled inverter for all required speeds (optional) hydraulically tilting head

Name

DNWQ-400

DNWQ-600

Unit

Max. working dimensions(LxWxH)

3200X3200X80

3200X3200X180

mm

Blade diameter

350-400

400-600

mm

Table dimensions (LxW)

3200X2000

3200X3200

mm

Table tilting degree

0-85

0-85

Degree

Table rotating degree

90

0 45 90 360

Degree

Main motor power

15

15

Kw

Water consumption

4

4

M3/h

Overall dimensions(LxWxH)

6000X5000X2800

6000X5000X2800

mm
