ZDMJ-16T Automatic Polishing Machine

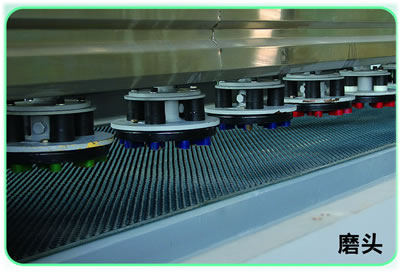

This Machine gives up to 90 Degree Finishing and best technology for fast production. The machine is made by standard castings and steel, branded electrical equipment made in German, Japan and Taiwan. This machine can also automatically identify the shape of tile, so that each polishing disc (polishing head) could automatically lift and lower according to the identified shape of tile and conduct tracking records for tile polishing at the same time.

Name

ZDMJ-8T

ZDMJ-12T ZDMJ-16T Unit

The number of grinding

8

12 16 N

Thickness of the effective work

15-50

15-50 15-50 mm

Effective working width

600-1050(add width 1250)

600-1050 600-1050 mm

Belt feed rate

0.8-3.0

0.8-3.5 0.8-3.5 m/min

Grinding motor power

7.5

7.5 7.5 kw

Total power

65

95 125 kw

Water consumption

10

12 16 M3/h

Dimensions

5.3x1.9x2.2

6.4X1.9X2.2 7.8X1.9X2.2 m
